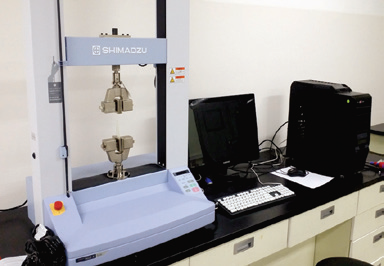

A piece of equipment that applies stress to the sample to measure mechanical properties such as load, strength, and tensility of the sample.
- USB communication quickens data sampling and processing, allowing precise data to be obtained from extremely subtle changes in the sample.
1.Max. load weight: 5kN
2. Stroke distance: 800mm (excluding grip)
3. Effective test space: 425mm
4. Sampling speed: 1,000Hz max
5. Measuring accuracy: 1/500, ± 1%
6. Range of measuring speed: 0.001 ~ 1,000mm / min (stepless)
7. Accuracy of measuring speed: ± 0.1%
- Inspection of optical materials / parts
- Inspection of electronic / mechanical material
- Stability tests
- Inspection after micromachining
